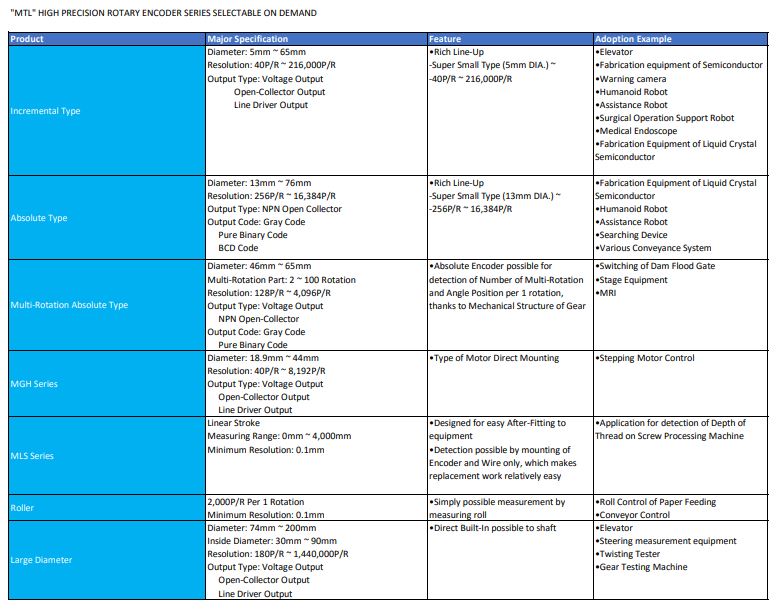

“MTL” High Precision Rotatory Encoder Series Selectable on demand



Product Major Specification Feature Adoption Example
Incremental Type Diameter: 5mm ~ 65mm
Resolution: 40P/R ~ 216,000P/R
Output Type: Voltage Output, Open-Collector Output, Line Driver Output
•Rich Line-Up
-Super Small Type (5mm DIA.) ~
-40P/R ~ 216,000P/R

• Elevator
• Fabrication equipment of Semiconductor
• Warning camera
• Humanoid Robot
• Assistance Robot
• Surgical Operation Support Robot
• Medical Endoscope
• Fabrication Equipment of Liquid Crystal Semiconductor



Absolute Type Diameter: 13mm ~ 76mm
Resolution: 256P/R ~ 16,384P/R
Output Type: NPN Open Collector
Output Code: Gray Code, Pure Binary Code, BCD Code
•Rich Line-Up
-Super Small Type (13mm DIA.) ~
-256P/R ~ 16,384P/R

• Fabrication Equipment of Liquid Crystal Semiconductor
• Humanoid Robot
• Assistance Robot
• Searching Device
• Various Conveyance System



Multi-Rotation Absolute Type Diameter: 46mm ~ 65mm
Multi-Rotation Part: 2 ~ 100 Rotation
Resolution: 128P/R ~ 4,096P/R
Output Type: Voltage Output
NPN Open-Collector
Output Code: Gray Code, Pure Binary Code
•Absolute Encoder possible for detection of Number of Multi-Rotation and Angle Position per 1 rotation, thanks to Mechanical Structure of Gear • Switching of Dam Flood Gate
• Stage Equipment
• MRI
MGH Series Diameter: 18.9mm ~ 44mm
Resolution: 40P/R ~ 8,192P/R
Output Type: Voltage Output, Open-Collector Output, Line Driver Output
•Type of Motor Direct Mounting • Stepping Motor Control
MLS Series Linear Stroke
Measuring Range: 0mm ~ 4,000mm
Minimum Resolution: 0.1mm
• Designed for easy After-Fitting to equipment
• Detection possible by mounting of Encoder and Wire only, which makes replacement work relatively easy
•Application for detection of Depth of Thread on Screw Processing Machine
Roller 2,000P/R Per 1 Rotation
Minimum Resolution: 0.1mm
•Simply possible measurement by measuring roll • Roll Control of Paper Feeding
• Conveyor Control
Large Diameter Diameter: 74mm ~ 200mm
Inside Diameter: 30mm ~ 90mm
Resolution: 180P/R ~ 1,440,000P/R
Output Type: Voltage Output ,Open-Collector Output, Line Driver Output
•Direct Built-In possible to shaft •Elevator
•Steering measurement equipment
•Twisting Tester
•Gear Testing Machine
